Creating Clean Air to Breathe

Our Products

 The goal at IAQ Solutions is to provide you with the best indoor air quality possible. Our products allow us to achieve incredible results in a variety of applications. We have seen prolific results in the past and continue to change the way the world cleans its air.

PCP Compound

Additional Information

 The 2008 PCP Compound utilizes the entire air-stream when installed in either the duct work or in the most accepted location--the air handler itself. The Genesis Air PCP Compound Photocatalyst System is used to reduce airborne biologics and VOCs in an air-stream. In many cases, it's a convenient choice for gas phase filtration in place of adsorbent systems. With a .05 pressure drop across the catalyst at 500 fpm you don't have the traditional pressure drop you see in charcoal bed systems. And with a 15-year catalyst life, life cycle costs are considerably reduced with the PCP series.

Features

  • .05" in pressure drop @ 500fpm
  • 15 Year catalyst lifespan
  • Renewable surface
  • No Ozone
  • Third Party Tested
  • UL, EPA, OSHPOD Certificates
  • 120 volts 60 hertz
  • amp draw: contact engineering


Downloads

2008 PCP Compound Spec Sheet (pdf)Download
2008 PCP Compound Applications Manual (pdf)Download
2008 IAQ PCP IOM 01301504 (pdf)Download

2008 CU

Additional Information

 2008 CU unit is designed to be installed in the supply ductwork of any rooftop or air handling unit downstream of the particulate filtration and after the evaporator coil. Installation must be completed by qualified service personnel. This unit may be used in conjunction with a filter grill on the return or on the supply duct.

Features

  • .05" in pressure drop at 500fpm
  • 15 year catalyst lifespan
  • Renewable surface
  • No ozone
  • Third Party Tested
  • UL, OSHPD, EPA Certificates

Downloads

2008 CU Spec Sheet (pdf)Download
2008 CU Installaton and Operations Manual (pdf)Download
2008 CU Applications Guide (pdf)Download

2008 B

Additional Information

 Stand alone unit or duct work attached and used as an air handler to conceal the unit above the ceiling space.

Features



  • Non-ozone producing lamps
  • 1 Merv 13 Filter 20” x 24” x 4”
  • 3-UVGI Lamps per PCP Panel
  • Scalable up to 4 PCP Panels
  • Size: W22.5” x H30.25” x L44.5”
  • Weight 163/174/185/197 lbs
  • Voltage: 120-60 hertz
  • Amps: 6.5 / 7.6 / 8.7 / 9.8
  • CFM: 2280
  • Variable Speed Control
  • Standard: caster, handles and powder coated: mock rock

Downloads

2008 B Spec Sheet (pdf)Download
2008 Installation and Maintenance Manual (pdf)Download
2008 B Applications Manual (pdf)Download

2008 DT FP

Additional Information

 The Genesis Air 2008DT-FP is a stand-alone unit. The unit is utilized as a ducted application for permanent installations. This unit will clean and recirculate the air in a room without disrupting the HVAC system.

Features



  • Non-ozone producing lamps
  • 3 - 20” 30 Watt UV Lamps
  • Filter Merv 13 20” x 20” x 4”
  • Voltage: 115 60 hertz
  • Amps: 4.7
  • Airflow: 830 cfm
  • Return: 23.5" x 23.5" x 13 in Drop Tile Grill

Downloads

2008 DT FP Spec Sheet (pdf)Download
2008 DT FP Operationa and Maintenance Manual (pdf)Download
2008 DT FP Applications Manual (pdf)Download

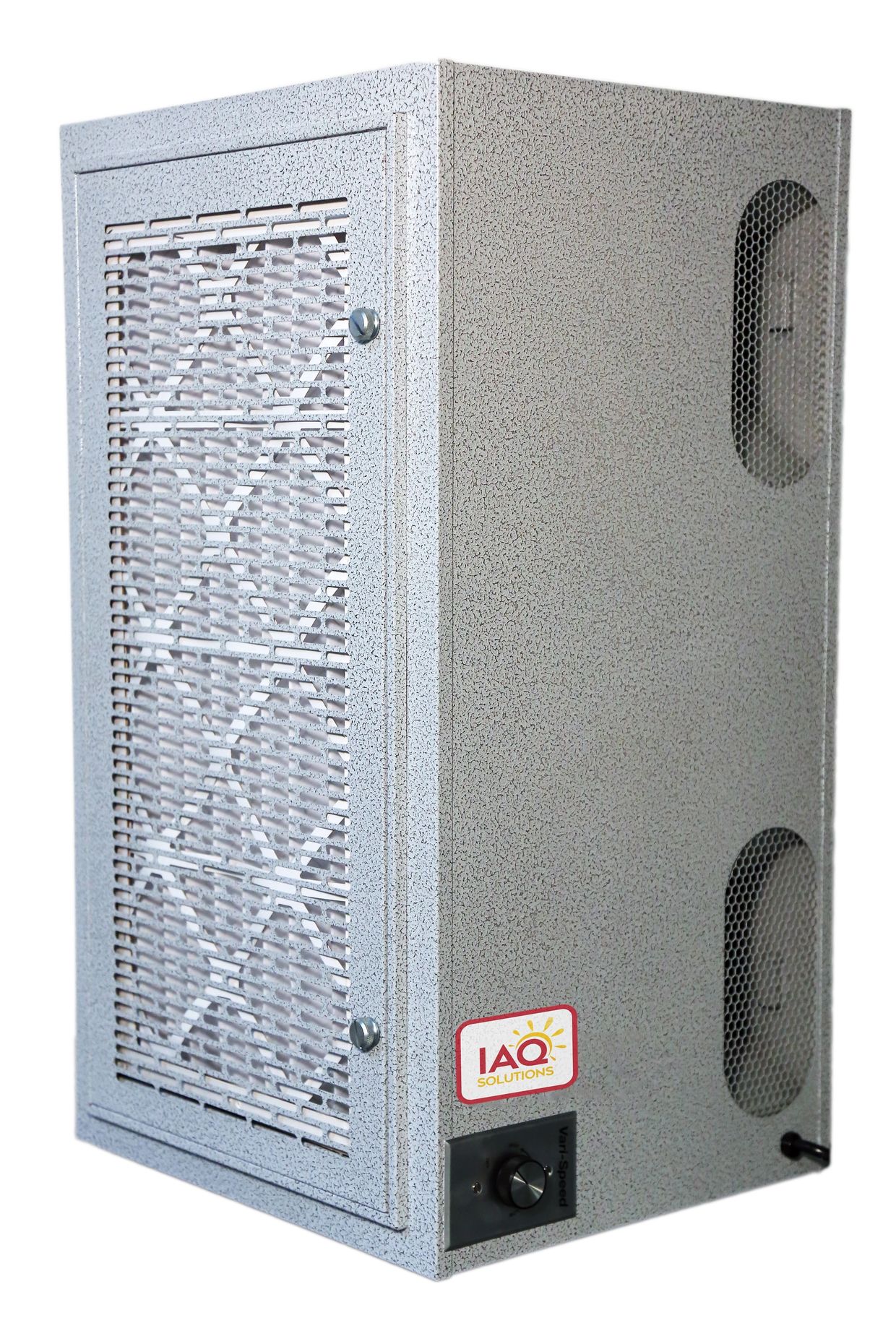

The RGS III a stand alone powder coated unit designed for wall mount and stationary use.

2008 RGS III

Additional Information

 The D & L unit is a multi purpose unit designed to be wall mounted or set on a desktop. It is equipped with a variable speed controller for the blower, multiple UVGI lamps, Merv 13 filters and catalysts panels for a more efficient GAP™ process.

Features



  • 2 Non-ozone producing lamps
  • Variable speed
  • Merv 13 Filter: 12” x 24” x 4”
  • 1 - 6” commerical duty catalyst
  • Voltage: 115 60 hertz
  • Amps: 3.4
  • Airflow: 200 -650 cfm
  • Size: 15” x 16.25” x 33.25”
  • Weight 58.2 lbs
  • Available in three colors
  • (Black, Gray and White)

Downloads

IAQS RGS III Spec Sheet (pdf)Download
